XCMG QY25K5D 25T Truck Crane

Brand:XCMG
Horsepower:
Year:
Drive type:
Product description: Main boom length ranges from 10.6m to 41.0m, providing superior lifting performance at both mid and full extension.
INQUIRY

Product Introduction

· Strong U-shaped Boom:

U-shaped cross-section boom offers high bearing capacity, low deformation, and excellent anti-bending performance.

· Flexible Boom Length:

Main boom length ranges from 10.6m to 41.0m, providing superior lifting performance at both mid and full extension.

· Enhanced Stability:

Plug-in boom head and embedded sliders reduce deformation and contact stress for smoother, safer operation.

· Powerful Transmission:

Equipped with a 9-speed gearbox for strong travel power and a maximum gradeability of 40%.

· High Efficiency & Speed:

Maximum travel speed reaches 90 km/h, meeting speed requirements while reducing energy consumption and system heat.

Dimension	QY25K5D Unit
Overall length	12300 mm
Overall width	2500 mm
Overall height	3350 mm
Total weight in travel	31750 kg
Front axle load	6550 kg
Rear axle load	25200 kg
Engine model	SC8DK280Q3
Engine rated power	206/2200 kW/(r/min)
Engine rated torque	1112/1400 N.m/(r/min)
Max. travel speed	80 km/h
Min. turning diameter	22 m
Min. ground clearance	260 mm
Approach angle	16 °
Departure angle	13 °
Max. grade ability	40%
Fuel consumption for 100km	≈37 L
Max. rated total lifting capacity	25 t
Min. rated working radius	3000 mm
Turning radius at turntable tail	3.065 m
Max. lifting torque	961 kN.m
Base boom	10.4 m
Fully extended boom	39.5 m
Fully extended boom+jib	47.8 m
Longitudinal outrigger span	5.14 m
Lateral outrigger span	6 m
Boom luffing time	68 s
Boom full extension time	150 s
Max. swing speed	2.5 r/min
Max. speed of main winch (single rope) (no load)	125 m/min
Max. speed of aux. winch (single rope) (no load)	125 m/min

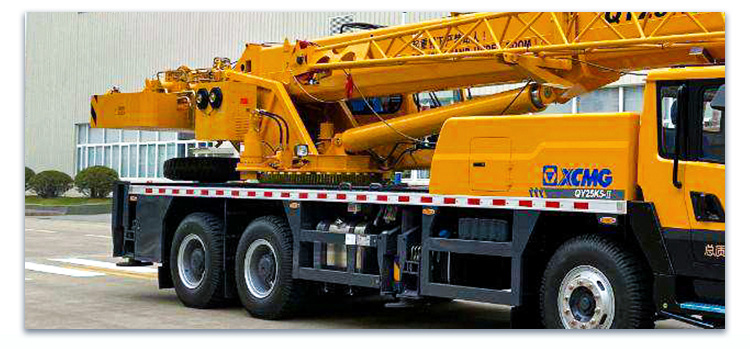

Product Details

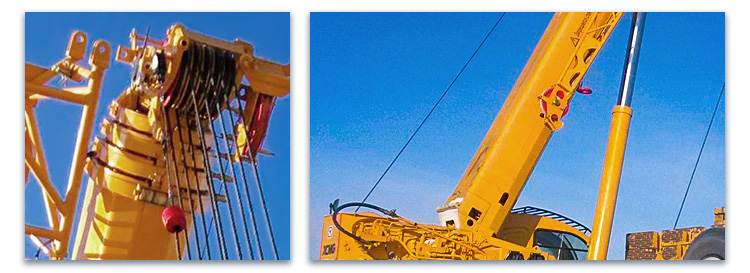

Super lifting performance
· 5-section boom of 40 m with octagonal cross section; double-cylinder plus ropes telescoping mechanism ; max load moment of base boom is 961 kN.m , and that is 553kN.m of fully extended boom.
· Advanced build-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and smooth telescoping movement.

Mature load sensitive hydraulic system
· With pilot controlled load sensitive technique, hydraulic system could not be influenced by variation of load pressure and flow of pumps, so as to control speed ,reduce energy consumption and heating , increase the working life.

· Unique slewing buffer technology ensures precisely control of flow and pressure, which leading to smooth slewing movement.

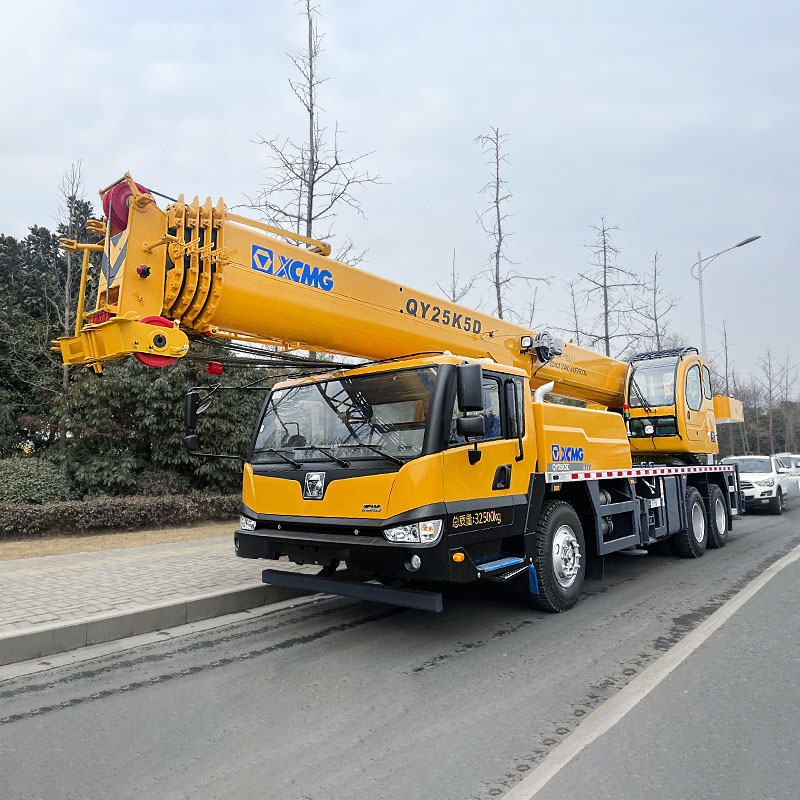

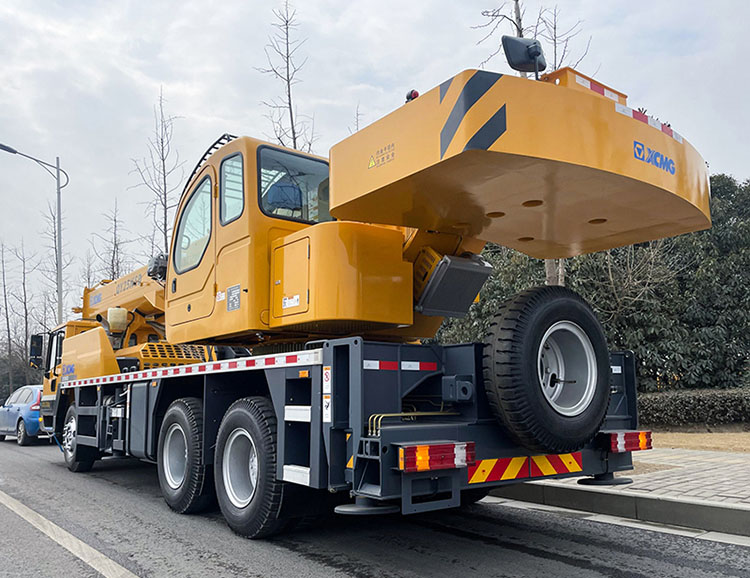

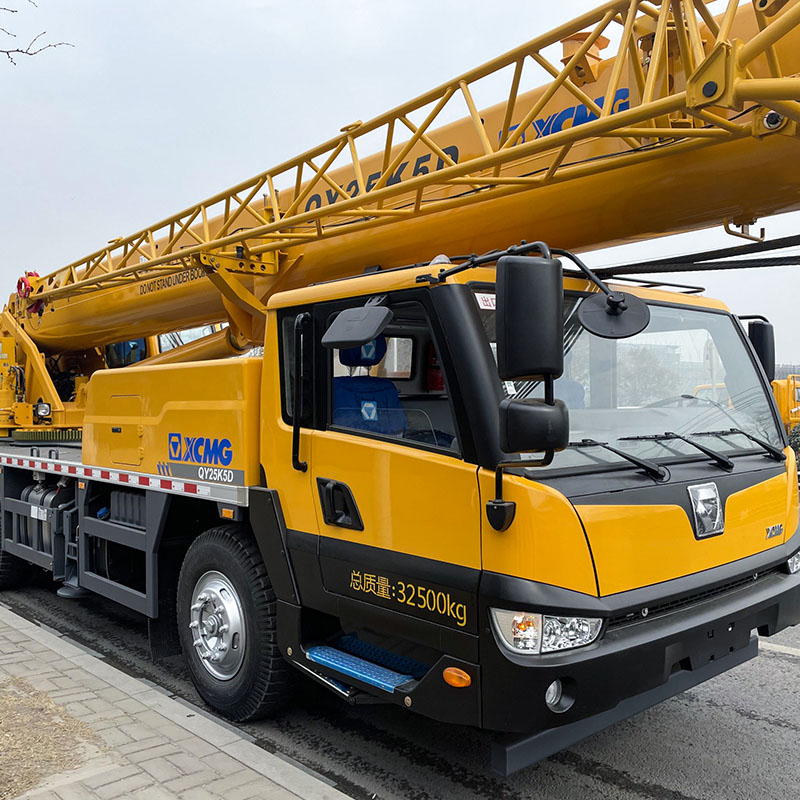

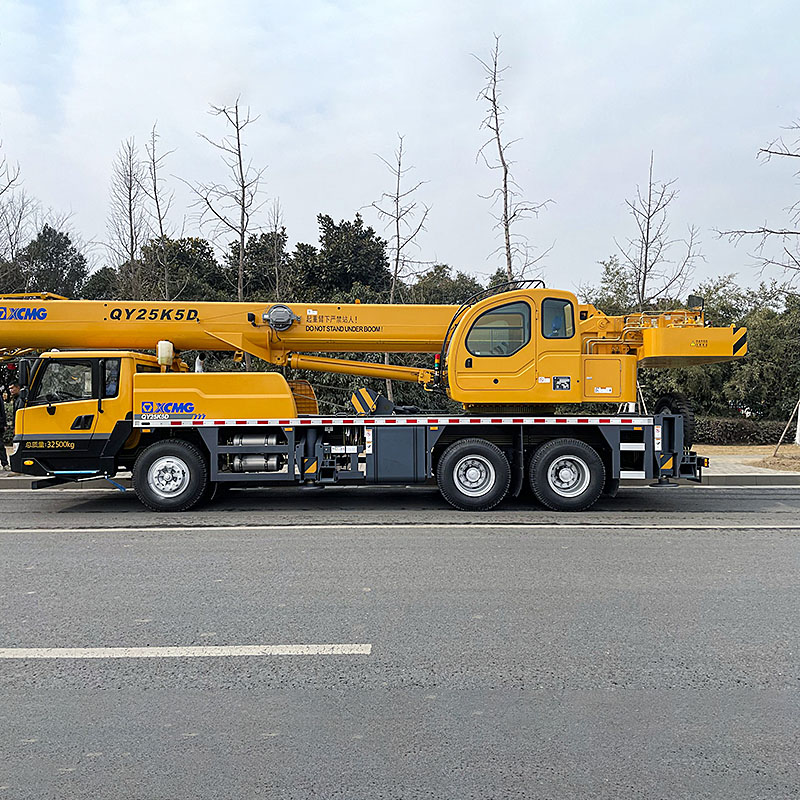

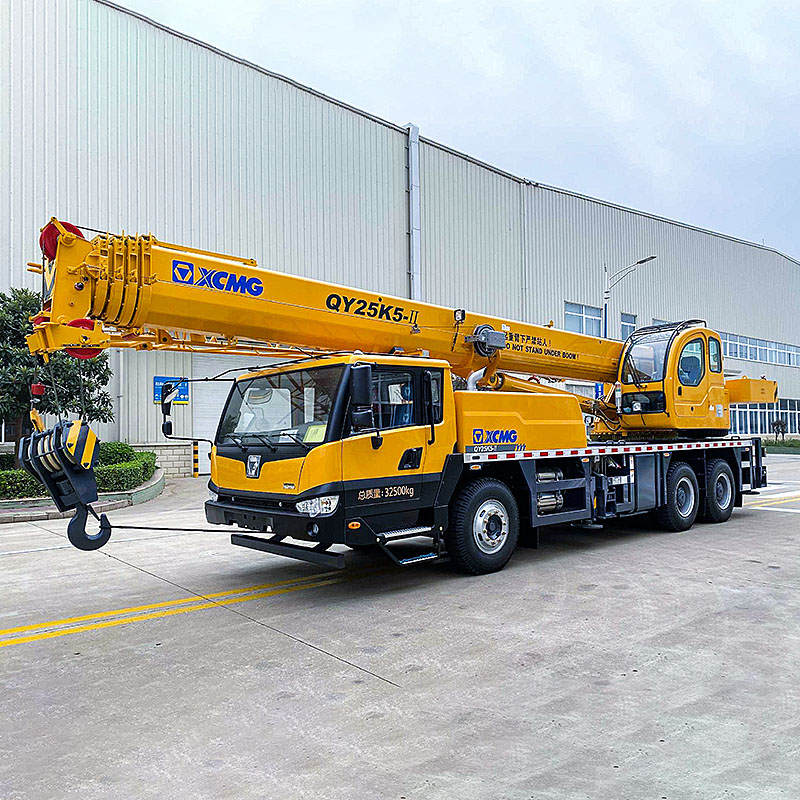

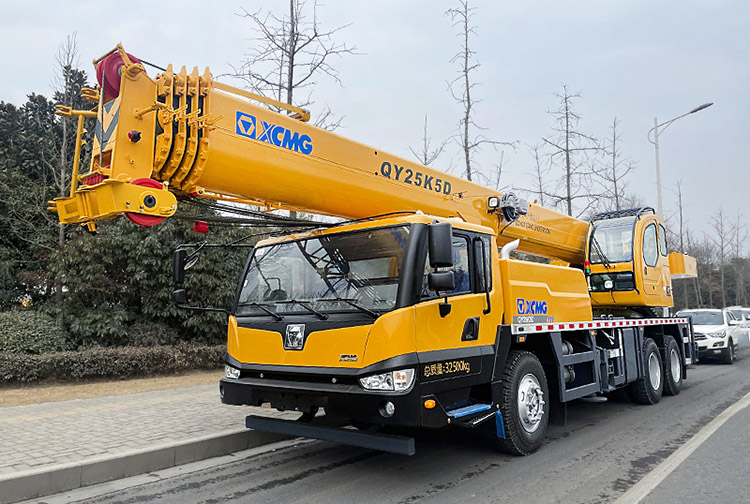

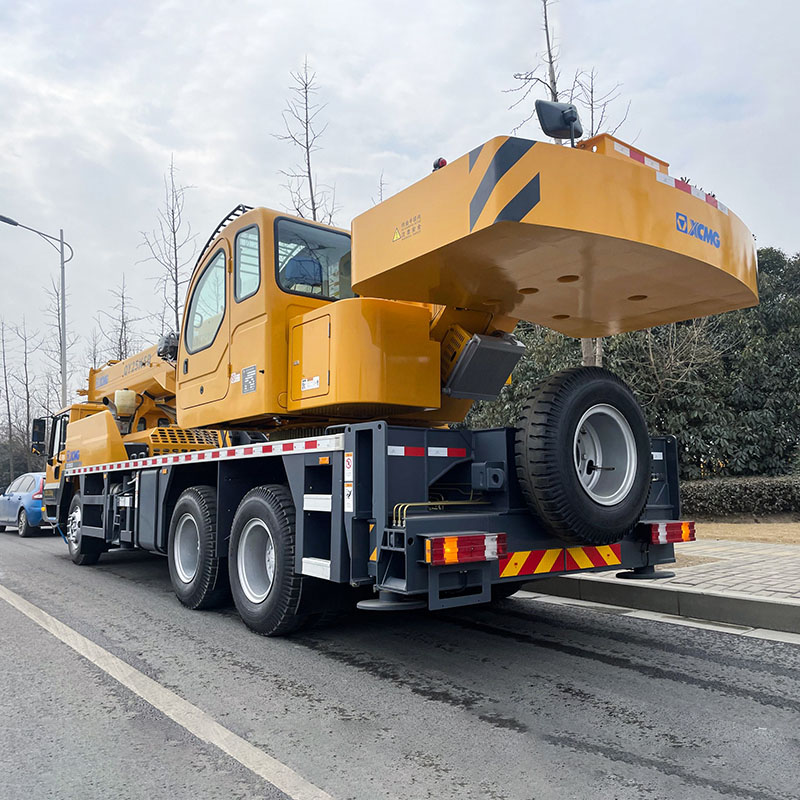

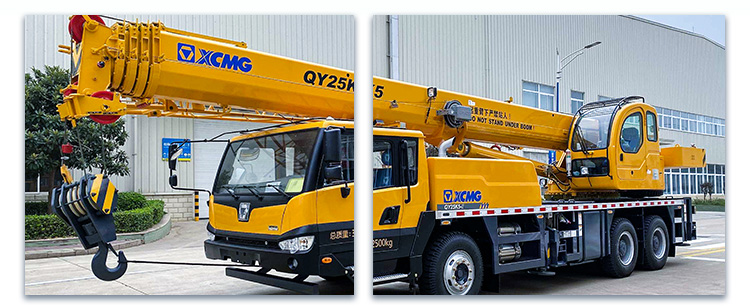

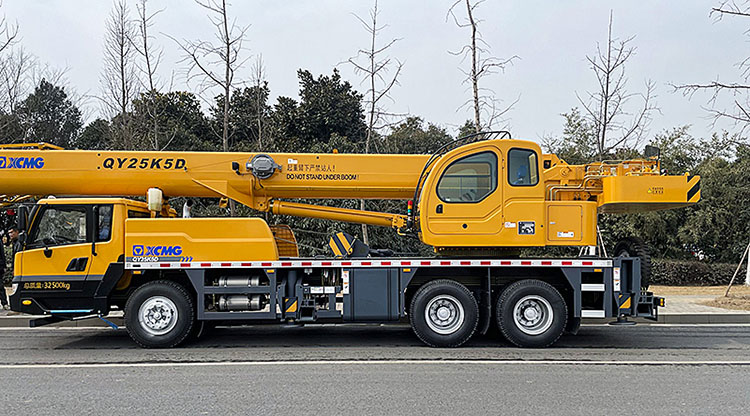

Product real shot
