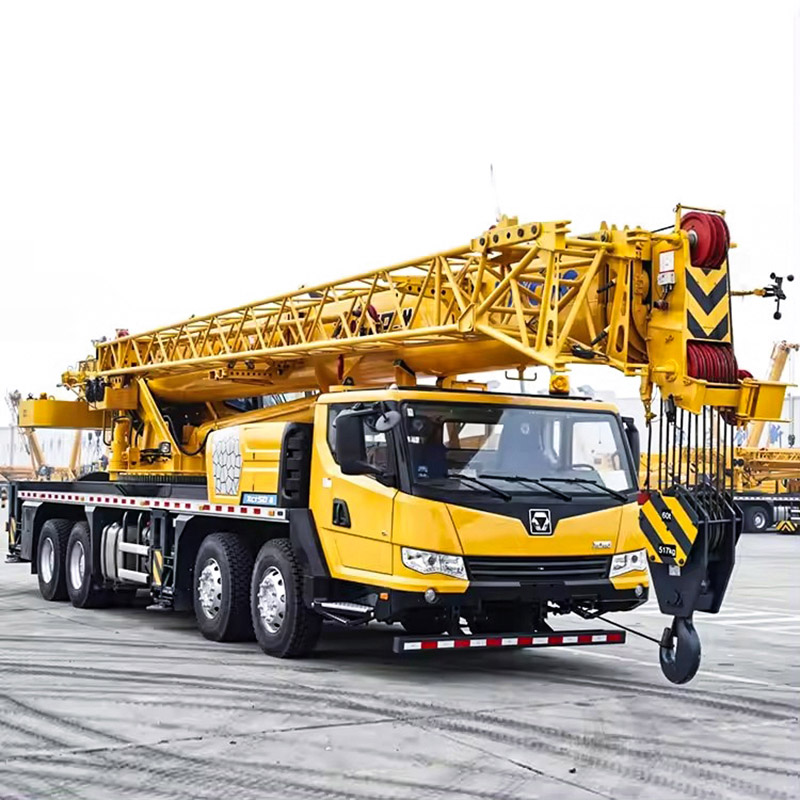

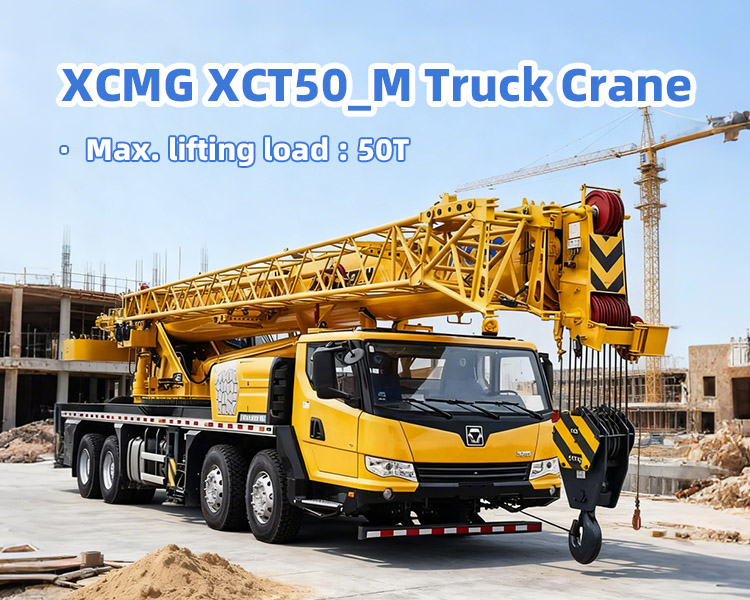

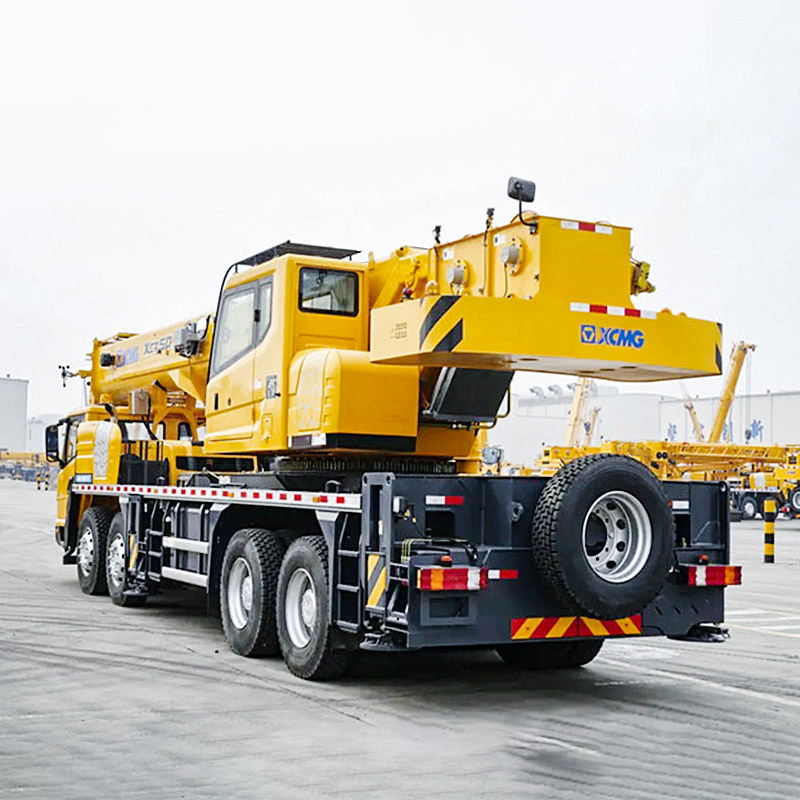

XCMG XCT50_M 50T Truck Crane

Brand:XCMG
Horsepower:
Year:
Drive type:
Product description: The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.
INQUIRY

Product Introduction

1.Superior Lifting Performance:
43.5 m, 5-section U-type boom — the longest in its class, with 8% higher lifting performance and an upgraded random telescoping system for faster, more efficient boom extension.
2.Energy-Saving Hydraulic System:
Dual-pump separate and confluent control technology delivers smoother compound movements and higher working efficiency.
3.Powerful Drive System:
Rated power 247 kW, max torque 1350 N·m, with a top speed of 90 km/h and gradeability up to 38%, ensuring strong mobility and performance.

Dimensions (length x width x height)	14040 * 2790 * 3630 mm
Total vehicle mass in travel configuration	40330 kg
Axle load 1st and 2nd axle	16530 kg
Axle load 3rd and 4th axle	23800 kg
Engine model	W0615.334
Engine rated power/rpm	247/2200 kW/(r/min)
Max. output torque/rpm	1350/1100-1600 N.m/(r/m1n)
Max. travel speed	90 km/h
Min. turning diameter	24 m
Min. ground clearance	250 mm
App roach angle	18/10 (front protective device included) °
Departure angle	13 °
Max. grade ability	38%
Fuel consumption per 100 km	35 L
Max. total rated lifting capacity	50 t
Min rated working radius	3 m
Max. load moment Base boom	2009 kN.m
Max. load moment Fully-extended boom	933 kN.m
Outrigger span Longitudinal	6.1 m
Outrigger span Lateral	7.1 m
Hoist height Base boom	11.2 m
Hoist height Fully-extended boom	43.3 m
Boom length Base boom	11.4 m
Boom length Fully-extended boom	43.5 m
Jib offset angle	0、15、 30 °
Boom raising time	≤40 s
Boom fully extending time	≤90 s
Hoistin Hoisting speed Main winch	≥130 m/min
(single line, 4th layer, no load) Auxiliary winch	≥130 m/min

Product Details

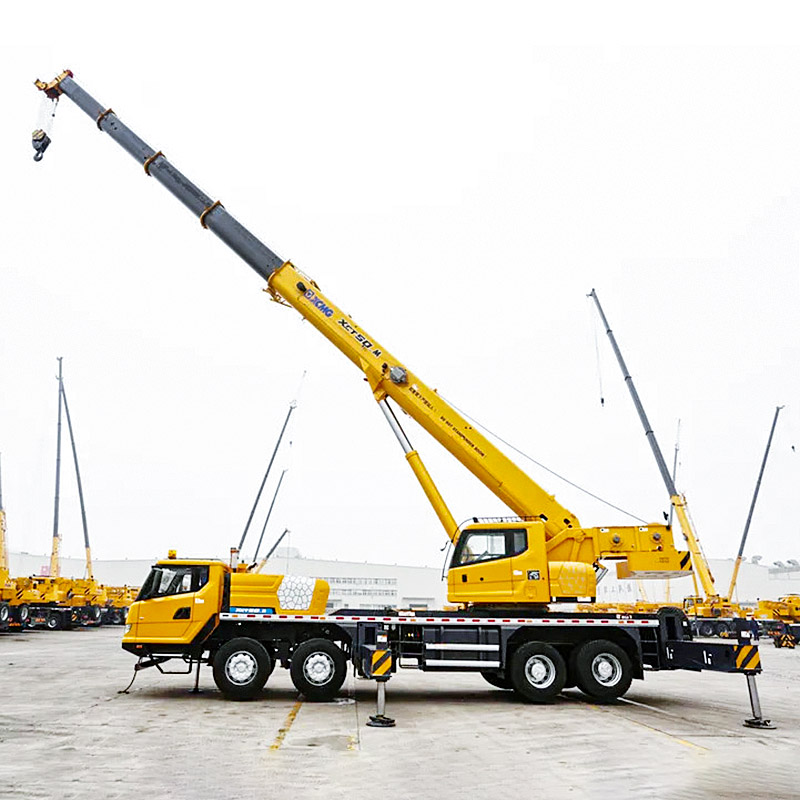

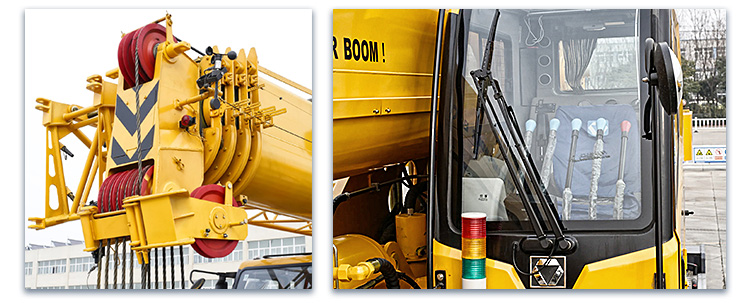

5-section boom of 43.5 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 12 for the main hook block. The performance is 8% higher than that of the competitors.

The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher.

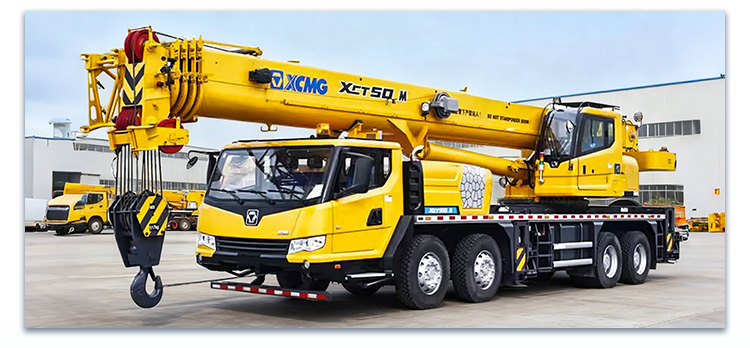

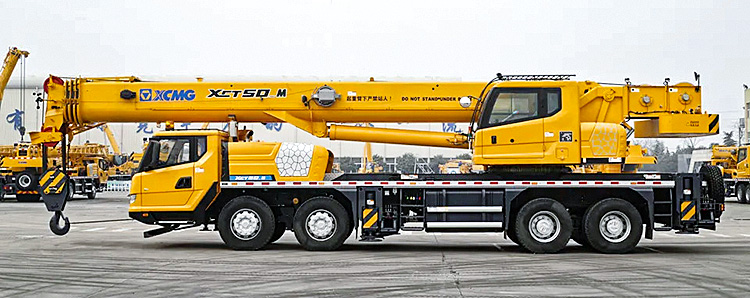

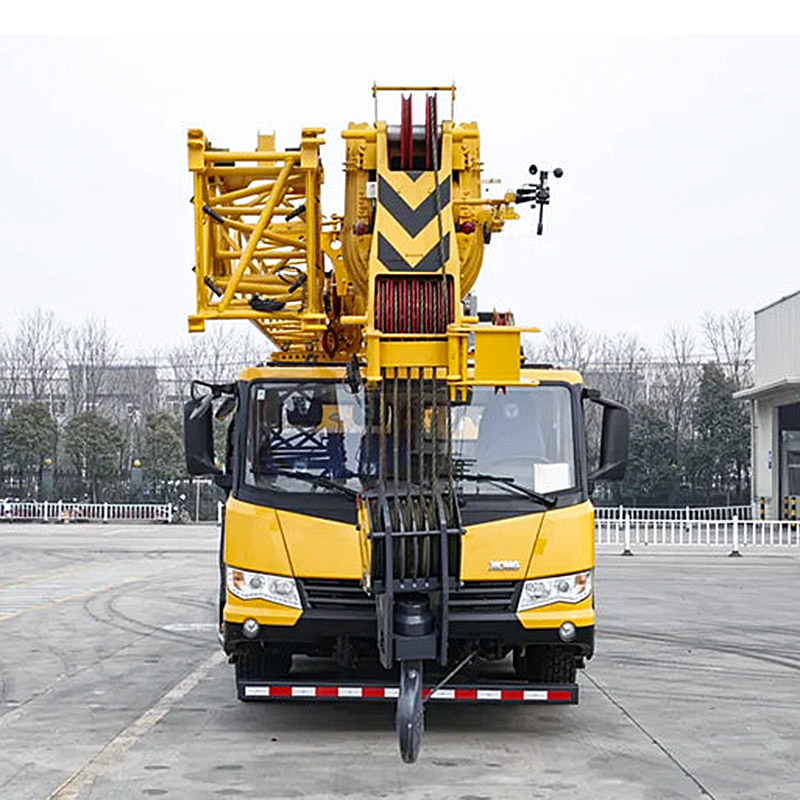

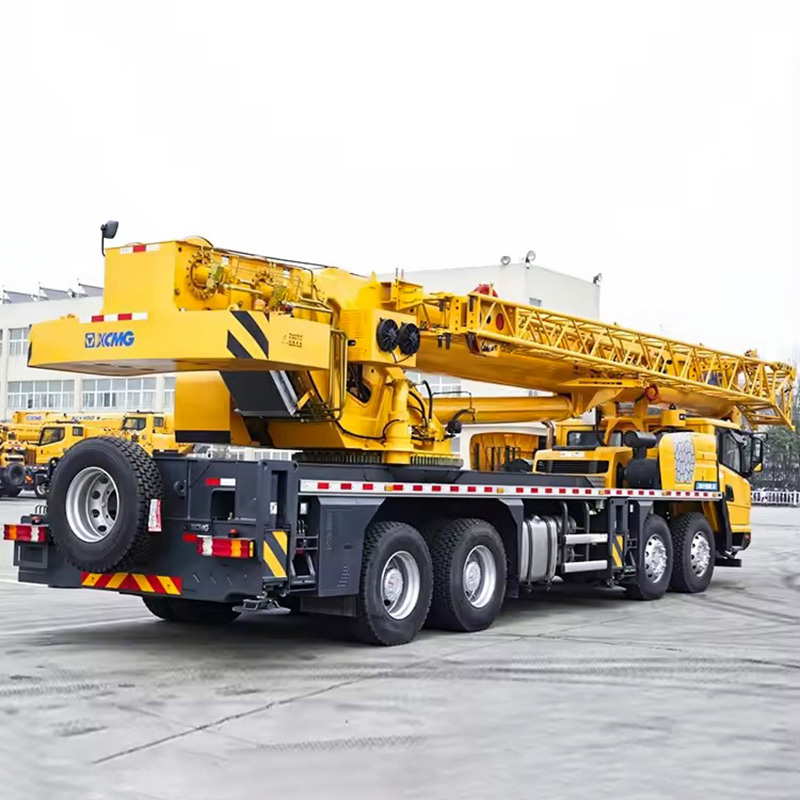

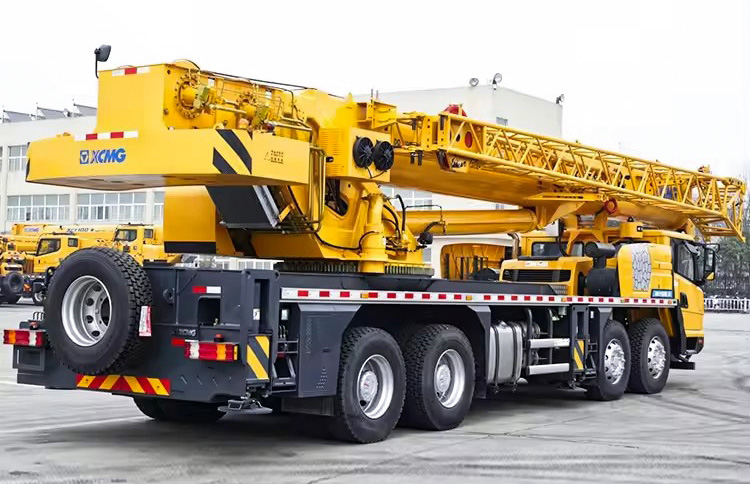

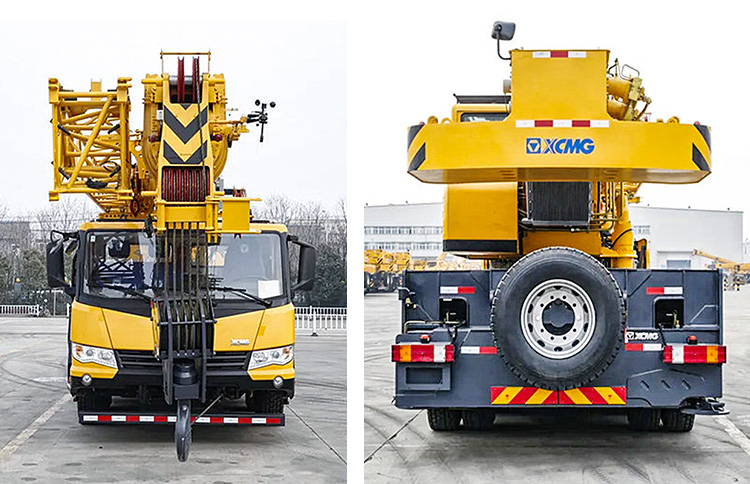

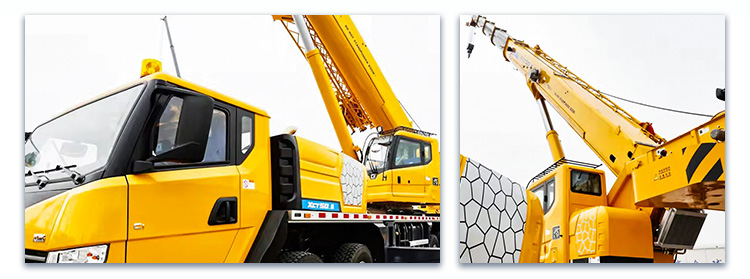

Product real shot
